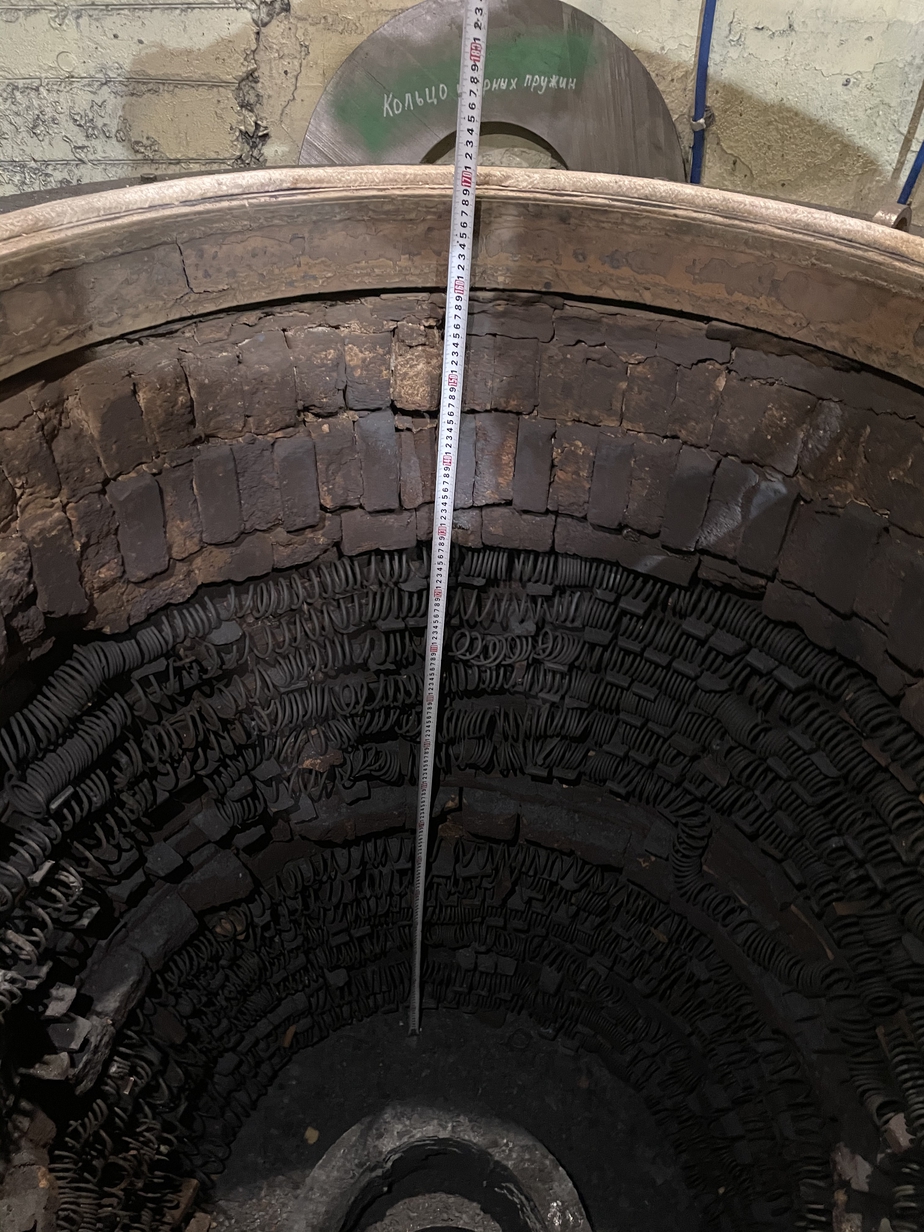

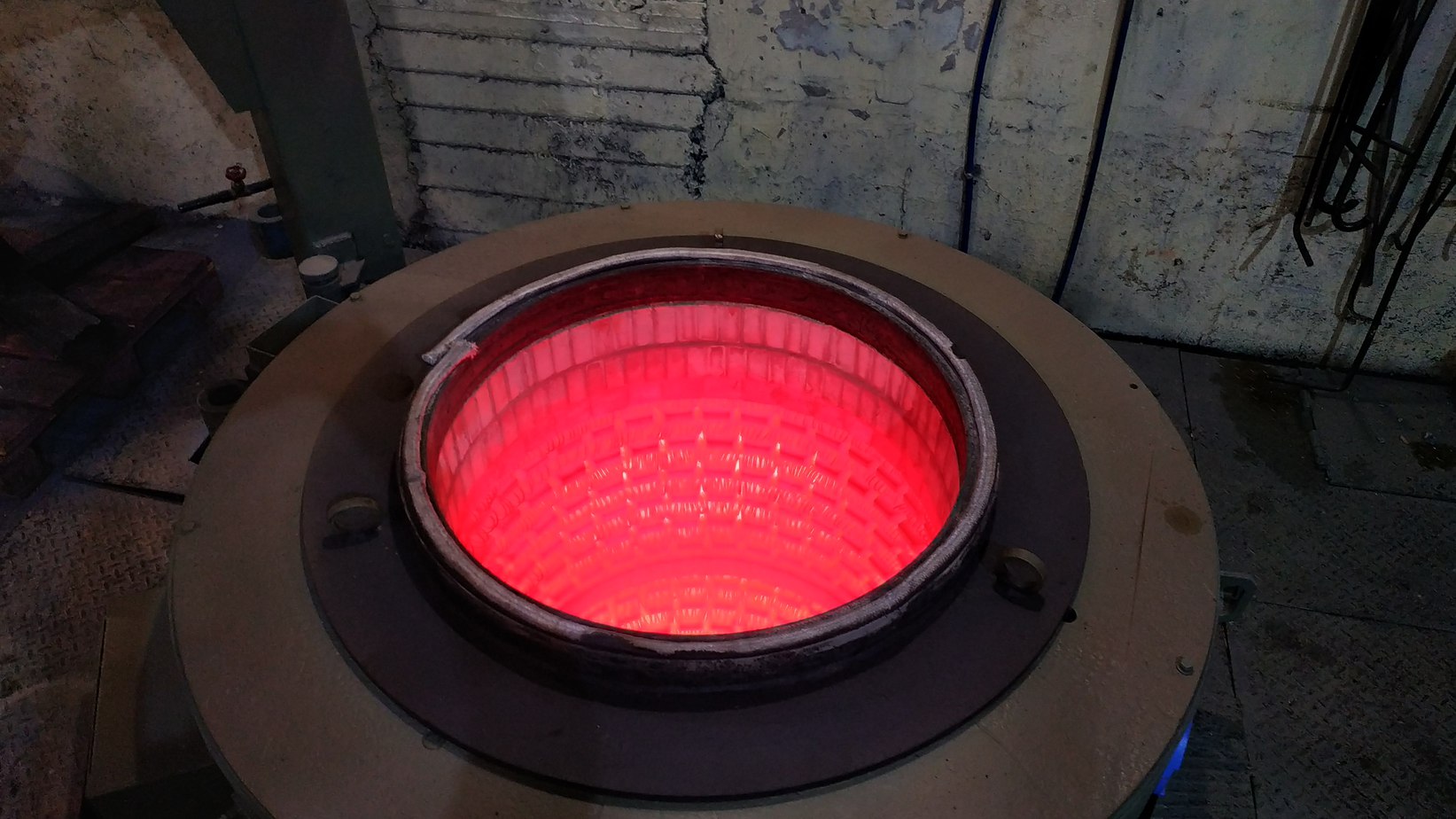

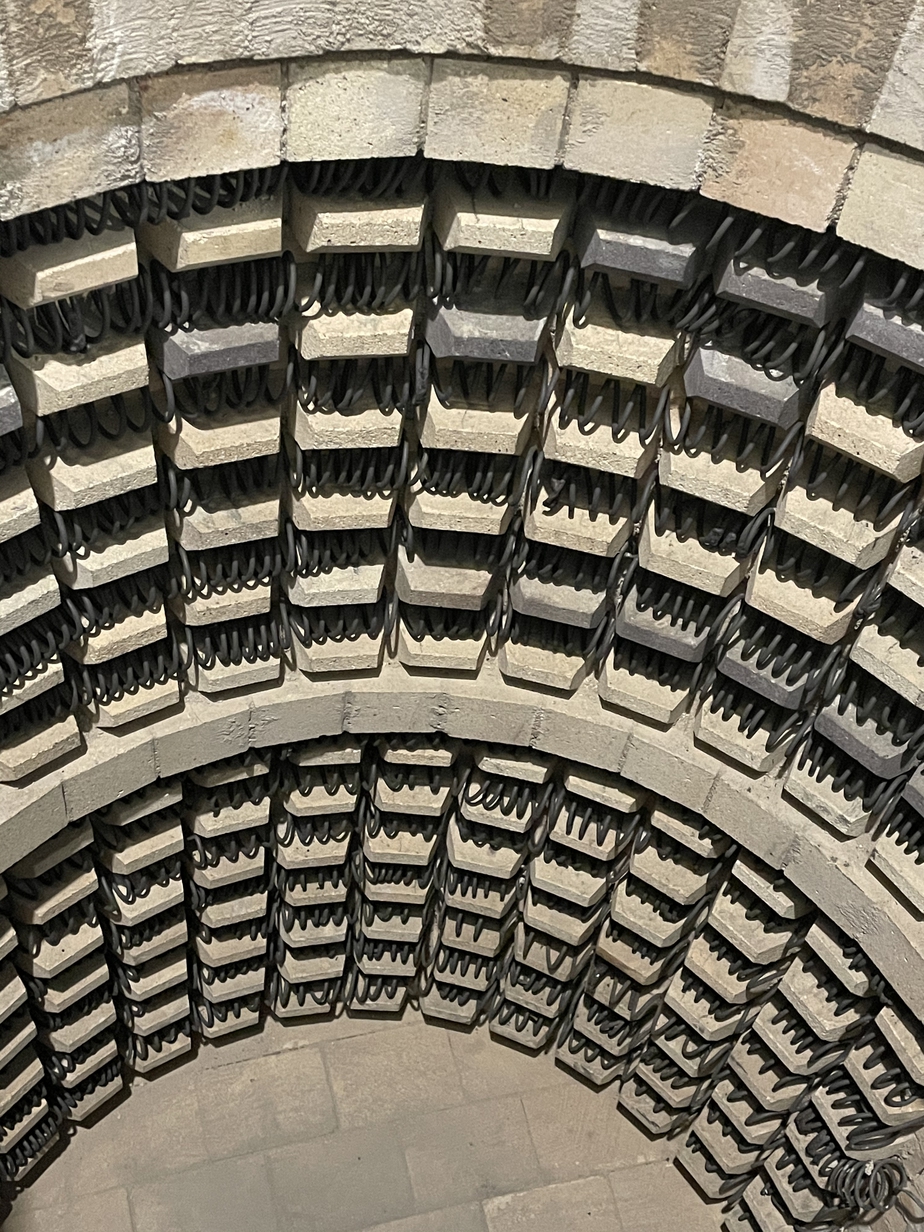

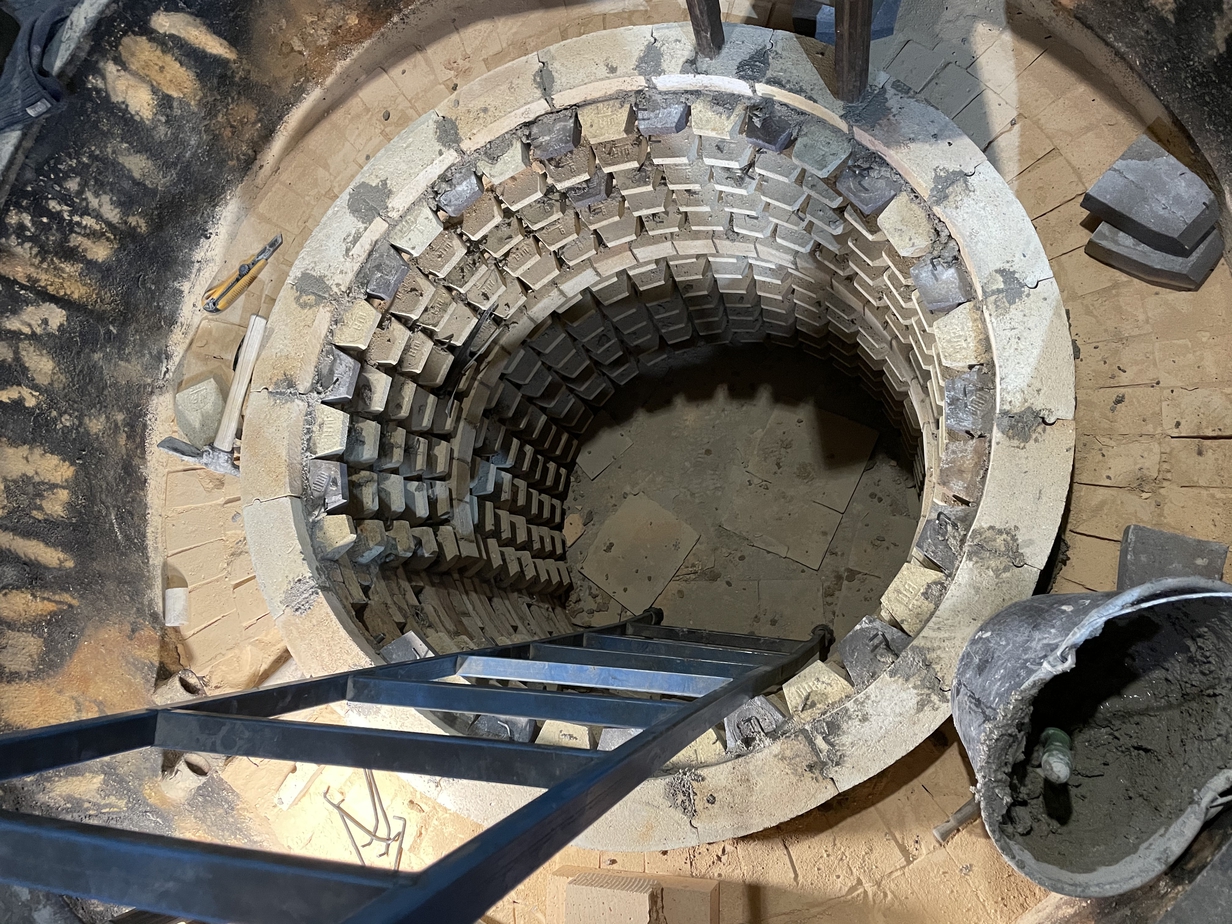

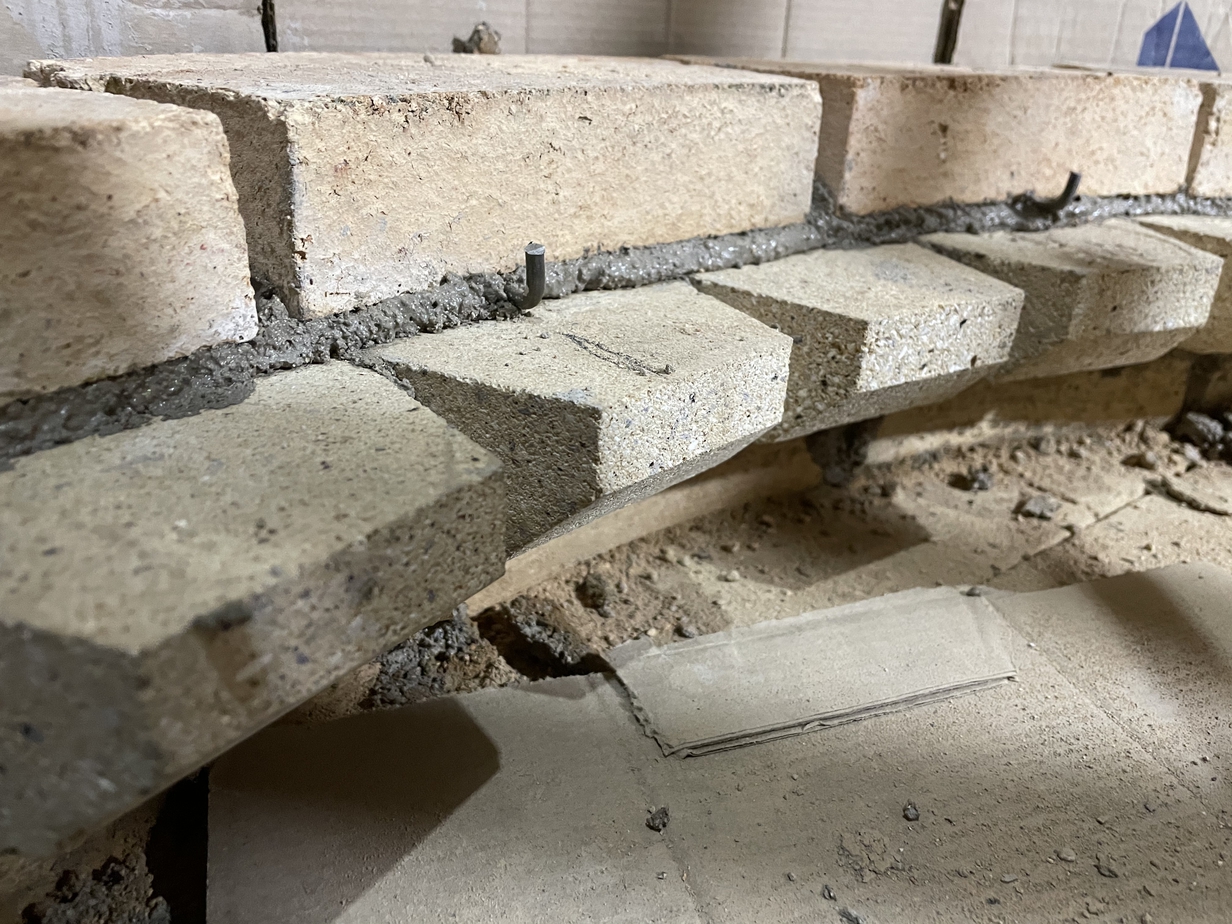

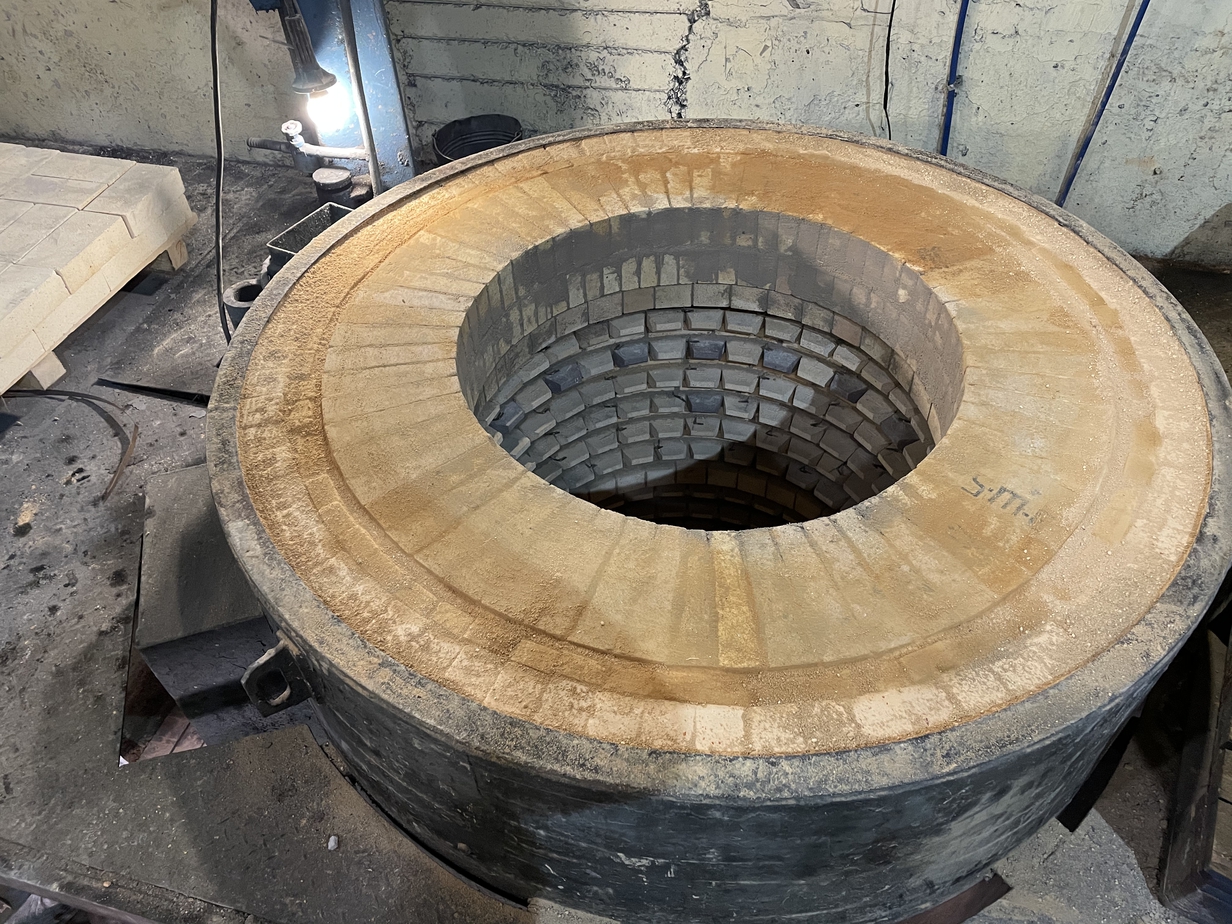

In December 2020, OOO NPP ADAMANT reconstructed the SSHTSM-6.6/9 IZ electric furnace using new modern refractory and heat-insulating materials, which make it possible to reduce the thickness of the lining, reduce heat losses and accelerate the process of reaching the operating temperature.

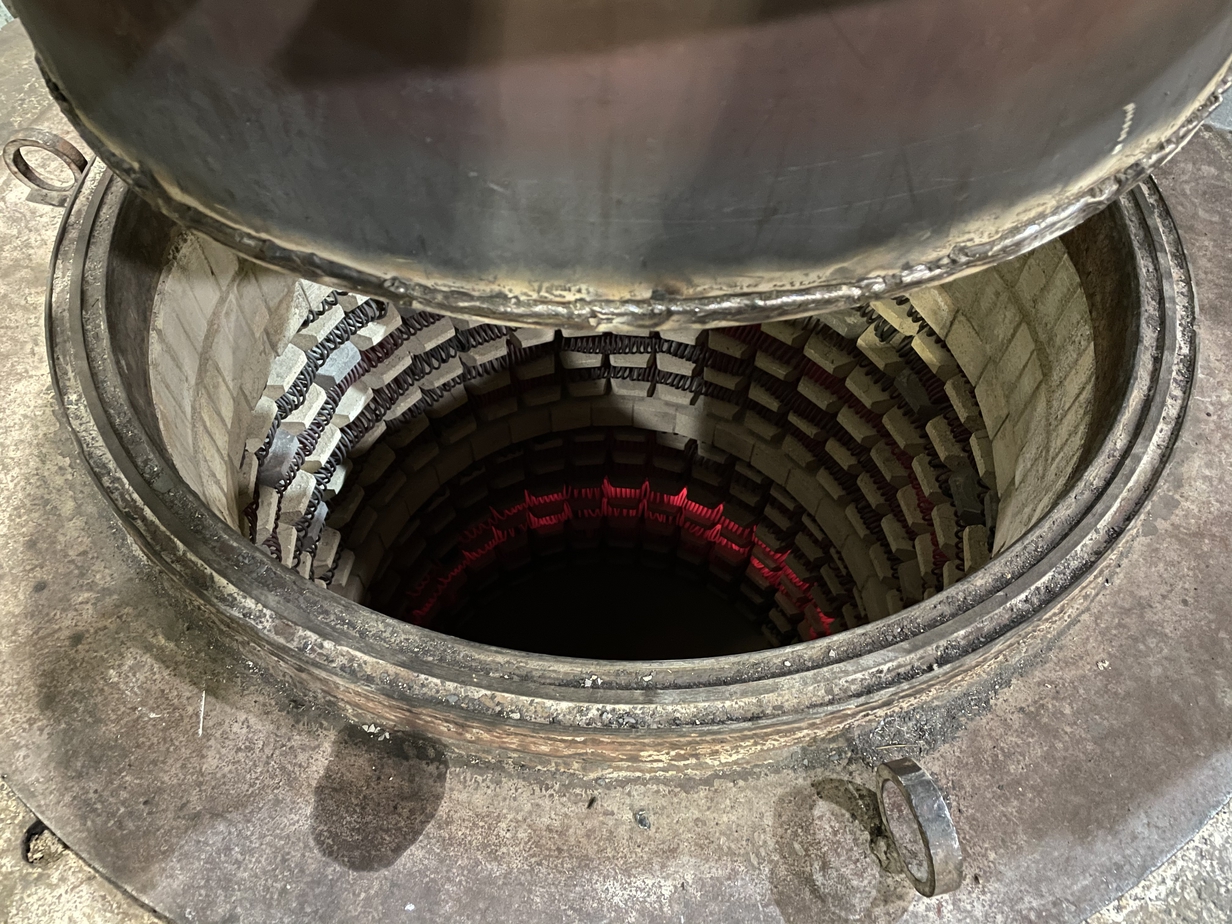

The shaft-type electric resistance furnace SSHTSM is designed for carburizing, nitrocarburizing and heating products for hardening in a non-oxidizing atmosphere or an oxidizing atmosphere. A distinctive feature of this furnace is – uniform temperature distribution in the heating zone, precise digital adjustment of process parameters, high uniformity of the resulting carburized layer.

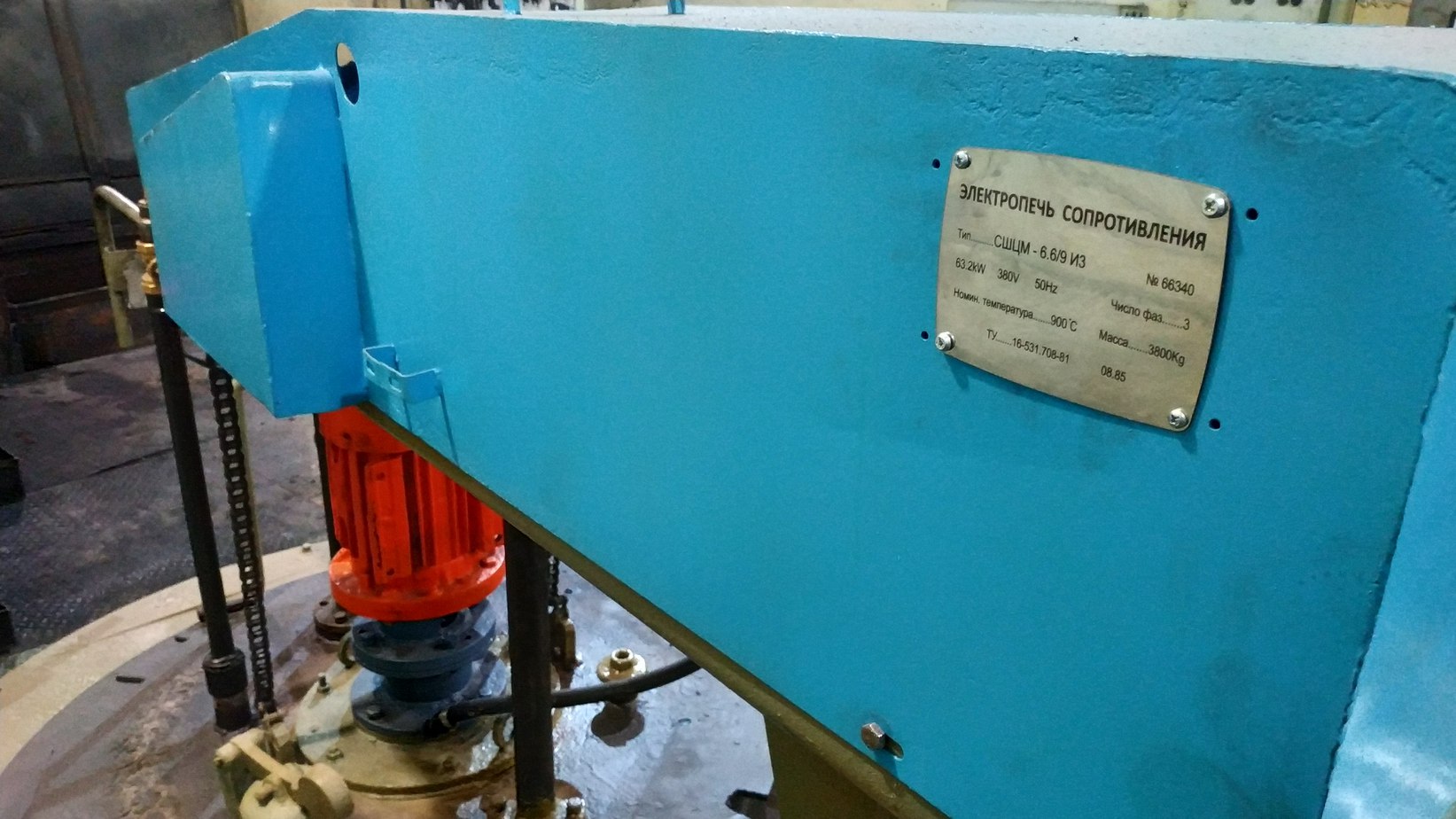

Technical data of the electric furnace SSHTSM-6.6/9 IZ:
Rated power………………………………………..63.2kW
Nominal temperature…………………………………900°С
Supply voltage……………………………………..380V
Number of phases……………………………………3
Frequency………………………………………….50Hz
Dimensions of the working space (diameter x height)…….600x600mm
Overall dimensions (width x length x height)…………..1485х2130х3075
Electric furnace weight……………………………..3800kg

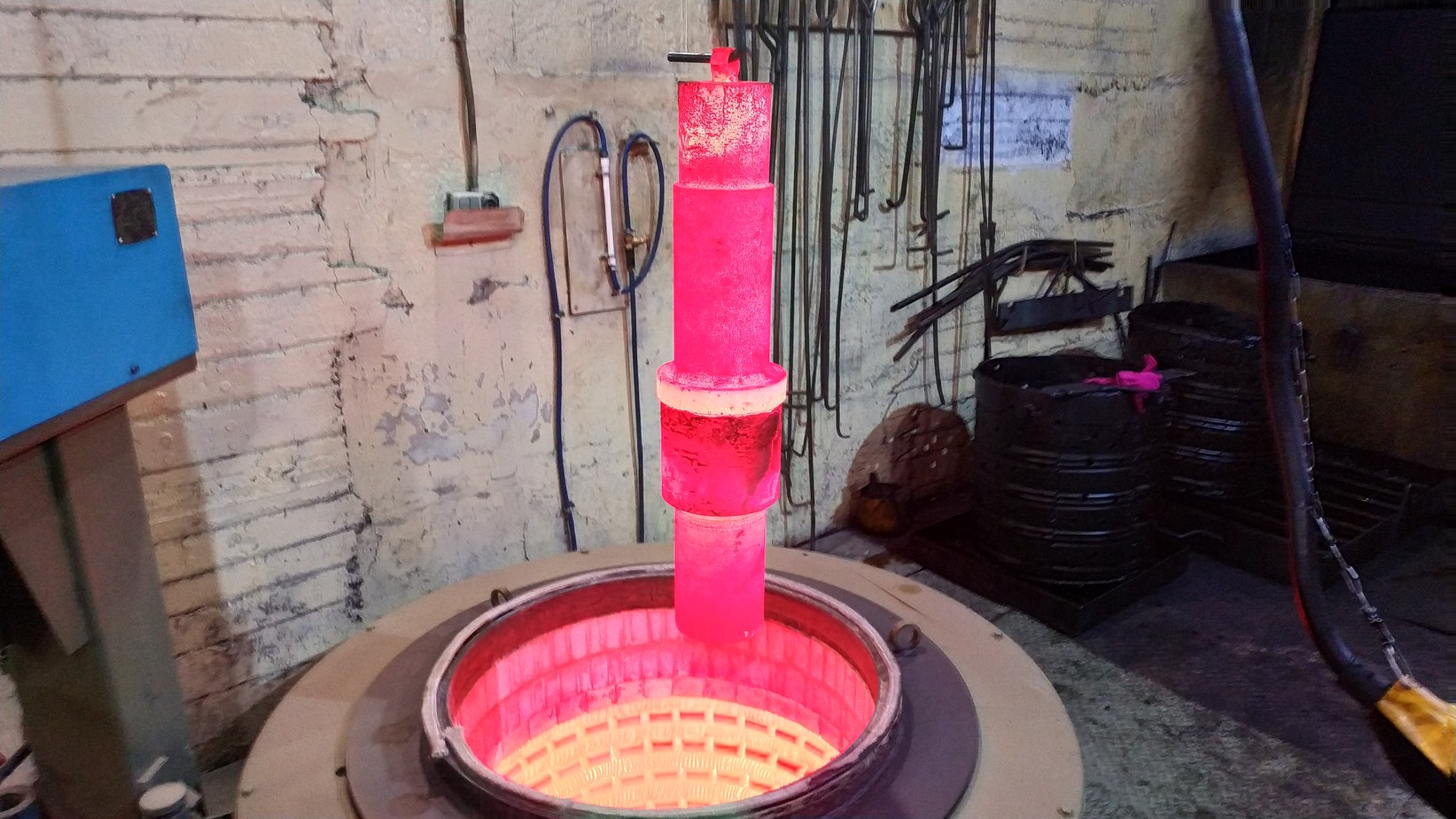

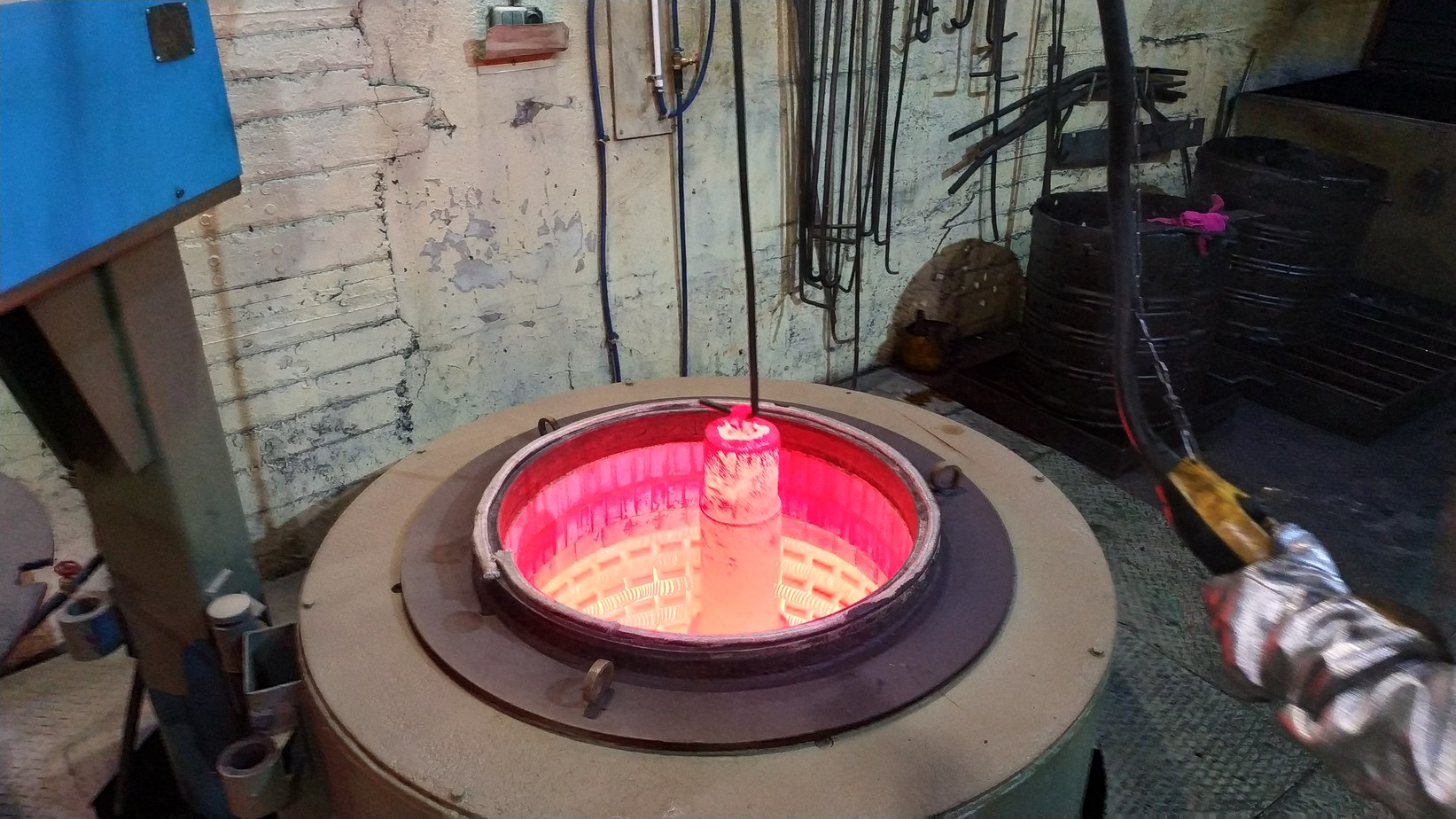

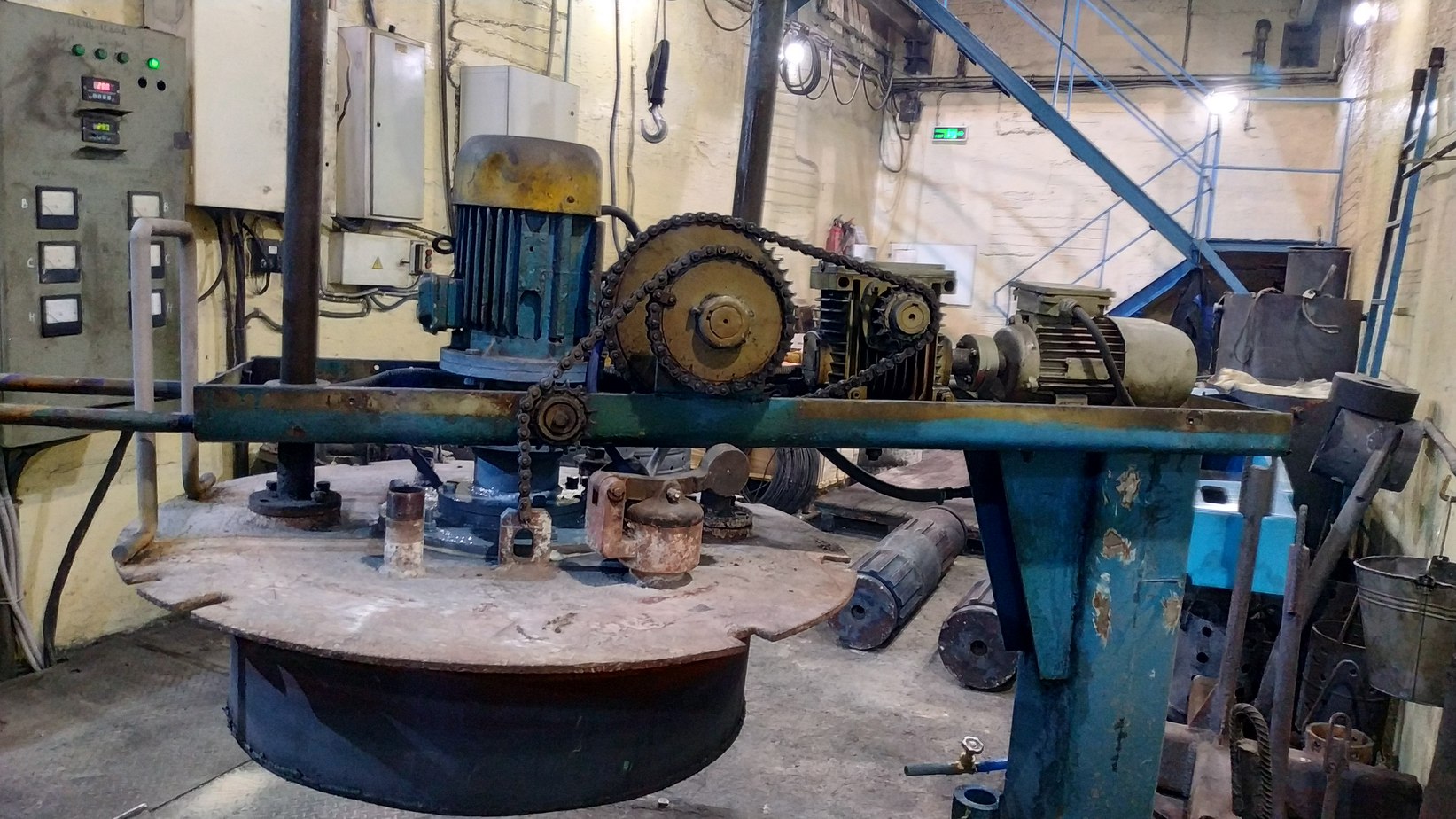

An important advantage in the operation of a shaft furnace is the possibility of loading and unloading them using universal suspension mechanisms such as crane beams, telphers, etc., which is very convenient when using furnaces for processing many products and materials.
